Tire Inspection
Suitable for various types of inflatable rubber tires such as car tires, heavy-duty truck tires, light truck tires, construction machinery tires, motorcycle tires, electric/power vehicle tires, aviation tires, refurbished tires, etc., including diagonal tires and radial tire structures.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Detection range
Applicable products: Suitable for various types of inflatable rubber tires such as car tires, heavy-duty truck tires, light truck tires, construction machinery tires, motorcycle tires, electric/power vehicle tires, aviation tires, refurbished tires, etc., including diagonal tires and radial tire structures.
Applicable materials: natural rubber, synthetic rubber, steel cord, fiber curtain, bead wire, rubber additives and other tire raw materials and semi-finished components.
Applicable scenarios: Used for new tire factory inspection, type testing, 3C certification testing, in use tire safety monitoring, refurbished tire quality assessment, raw material incoming inspection, quality arbitration, and failure analysis.
Testing items
Appearance and size inspection: The appearance is free of bubbles, cracks, missing glue, delamination, impurities, exposed lines, and deformation; Detect the outer diameter, cross-sectional width, tread depth, wheel fit, dimensional deviation, uniformity, and dynamic balance.
Strength and safety performance: tire body strength, bead adhesion, static load performance, puncture strength, burst pressure, high-speed performance, low-pressure performance, impact resistance.
Durability performance: indoor durability test, rolling resistance, tread wear, repeated flexural performance, fatigue life, long-term driving performance evaluation.
Airtightness and performance: Airtightness, pressure holding performance, pressure attenuation rate, valve sealing and anti stripping performance of inner tube/tubeless tires.
Wear resistance and grip performance: evaluation of tread wear, wear resistance index, wet road grip performance, and anti-skid performance on ice and snow roads.
Environmental adaptability: testing for hot air aging, ozone aging, oil resistance, water resistance, high and low temperature resistance, moisture resistance, and salt spray resistance.
Raw material and component performance: rubber tensile/hardness/compression permanent deformation, cord strength, steel wire bonding strength, belt layer/sidewall/tread component performance.
Refurbished Tire Special: Refurbished Tire Body Strength, Adhesive Strength, Appearance Quality, Durability, and High Speed Safety Performance.
Testing Standards
GB/T 2978-2017 Tire specifications, dimensions, air pressure and load
GB 9743-2015 Car Tires
GB 9744-2015 Truck Tires
GB 14646-2020 Motorcycle Tires
GB/T 45021-2025 Electric Vehicle Tires

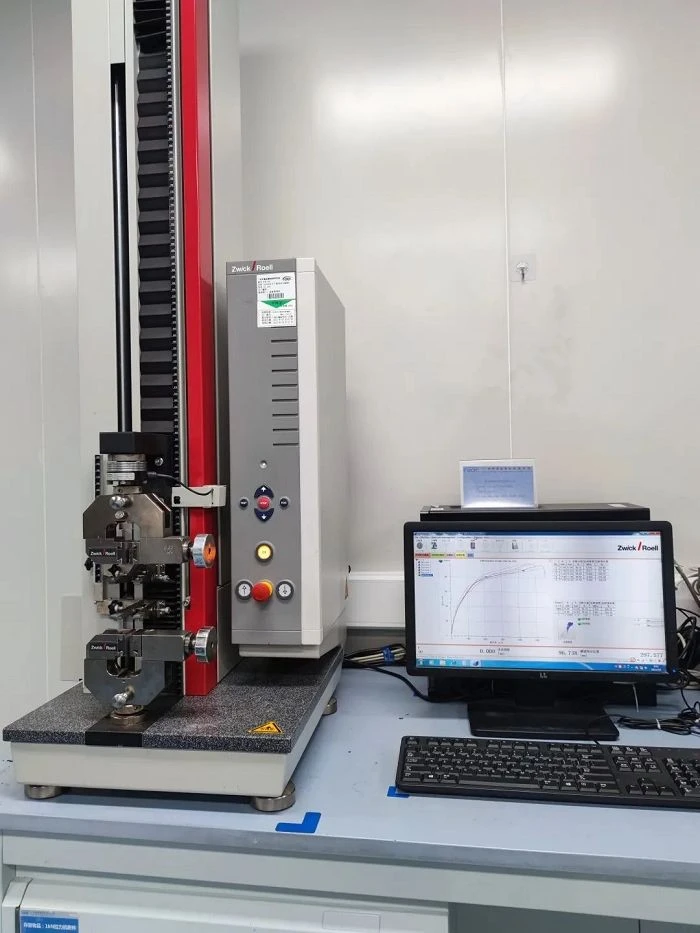

GB/T 528-2009 Determination of tensile stress-strain properties of vulcanized rubber or thermoplastic rubber

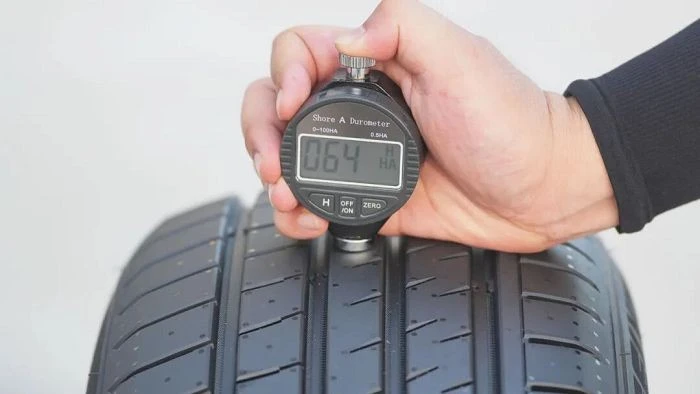

GB/T 531.1-2021 Rubber, vulcanized or thermoplastic - Test method for indentation hardness - Part 1: Shore hardness tester method
GB/T 3512-2014 Rubber, vulcanized or thermoplastic - Accelerated aging and heat resistance test in hot air
GB/T 7762-2024 Rubber, vulcanized or thermoplastic - Static tensile test for resistance to ozone cracking
GB/T 7036.1-2023 Inflatable Tire Inner Tubes Part 1: Automotive Tire Inner Tubes
GB/T 7036.2-2023 Inflatable Tire Inner Tubes Part 2: Motorcycle Tire Inner Tubes
GB/T 14647-2015 Bicycle Tires
was established in 2011. As a national high-tech enterprise recognized by the Zhejiang Provincial Higher People's Court as a judicial authentication institution for construction engineering quality, we specialize in structural performance testing and safety assessment of construction projects, special equipment, communication towers, electromagnetic environments, large bridges, and building safety appraisal.
The company has more than 100 professional and technical personnel, over 90% of whom hold various medium and senior technical certificates. Equipped with complete testing equipment worth over RMB 10 million, our business scope covers the whole country.
