Fracture Detection

Detection range

Black metals: carbon steel, alloy structural steel, stainless steel, tool steel, bearing steel, cast iron (gray iron/ductile iron/creep iron), high manganese steel, etc

Nonferrous metals: aluminum and aluminum alloys, copper and copper alloys, magnesium alloys, titanium and titanium alloys, zinc alloys, nickel based high-temperature alloys, etc

Special materials: hard alloys, powder metallurgy materials, precision alloys, welding alloys, metal composite materials, etc

General components: fasteners, shafts, gears, molds, springs, plates/pipes/profiles, etc

Engineering components: welded joints, heat-treated parts, pressure vessels, chemical pipelines, wind turbine spindles, ship accessories, aerospace components, etc

Test items

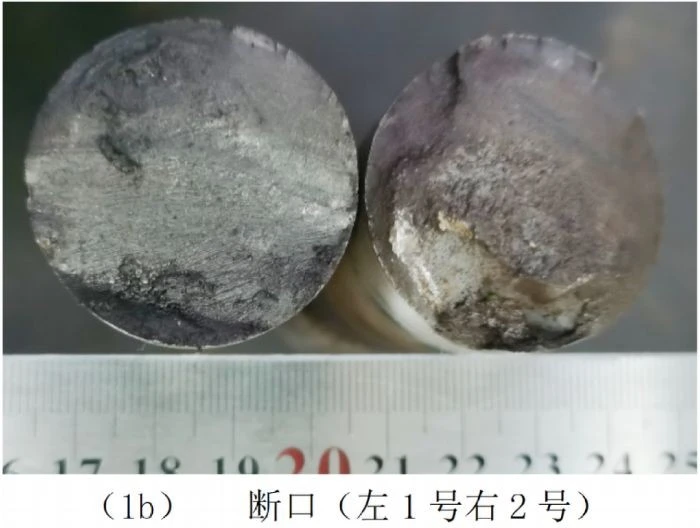

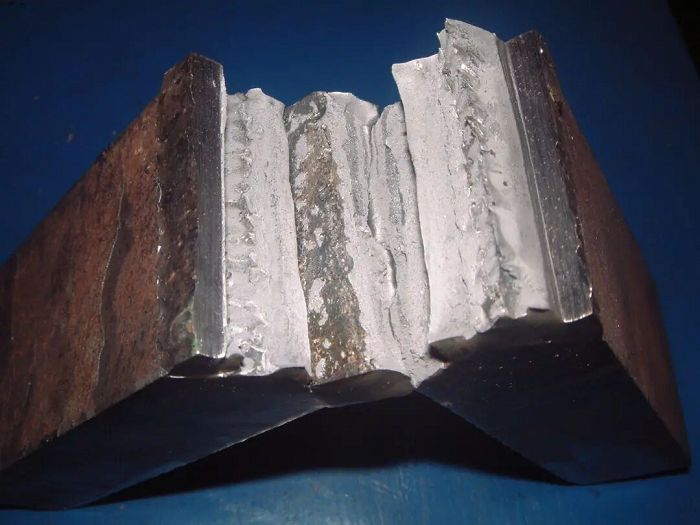

Macroscopic observation of fracture surface: Record the color, gloss, texture, and geometric shape of the fracture surface
Fault source localization and feature analysis: Determine the location of fault initiation and identify the macroscopic features of the source area (such as small planes, pits, and exposed inclusions)
Crack propagation path analysis: tracking the propagation direction and branching characteristics of cracks from the source area to the instantaneous fracture area

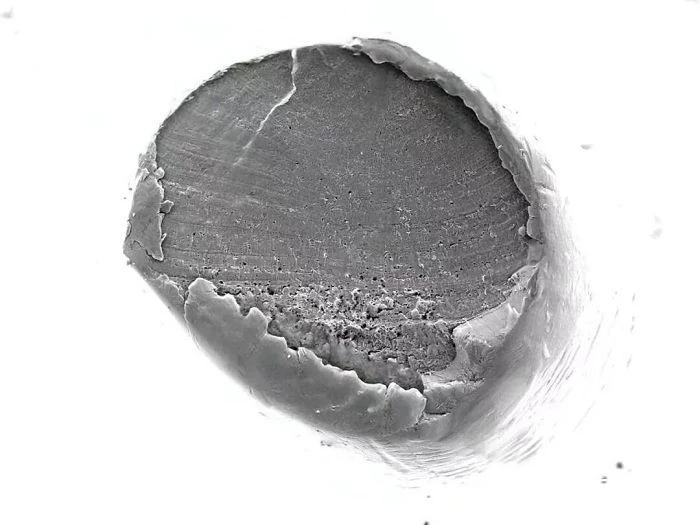

Fracture zone division: distinguish the range and proportion of source zone, extension zone (fatigue zone/creep zone), and transient fracture zone
Preliminary determination of failure modes: Qualitative differentiation of plastic fracture, brittle fracture, fatigue fracture, creep fracture, corrosion fracture, etc
Measurement of macroscopic characteristic parameters: measuring the size of the source area, the spacing between stripes in the expansion area, and the area of the instantaneous break zone, etc

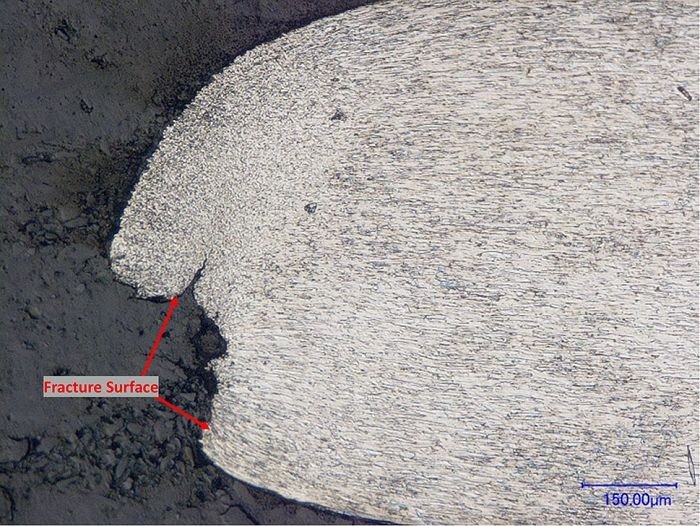

Microscopic morphology feature recognition: determining typical microscopic morphologies such as cleavage, quasi cleavage, transgranular fracture, ductile dimples (micro pore aggregation), fatigue bands, creep voids/grain boundary slip, stress corrosion cracking, etc

Correlation analysis between fracture and inclusions/second phases: Identify non-metallic inclusions and precipitates at the fracture surface to determine whether they are the core of crack initiation
Microcrack initiation and propagation characteristics: observation of the initiation location and propagation mode (transgranular/transgranular) of microcracks
Quantitative/semi quantitative analysis of failure mechanism: statistical parameters such as fatigue band spacing, creep pore density, and intergranular fracture ratio
Verification of environmental failure characteristics: identification of micro features related to the environment, such as corrosion products and hydrogen embrittlement induced transgranular fracture
The correlation between material organization and fracture: analyzing the influence of matrix microstructure (such as martensite, pearlite) on fracture behavior

GB/T 30558-2024 General Guide for Fracture Analysis of Metallic Materials

GB/T 18144-2019 Test Method for Fracture Surface of Metallic Materials

GB/T 13298-2015 Method for examination of microstructure of metals

GB/T 228.1-2021 Tensile Testing of Metallic Materials Part 1: Room Temperature Test Method

GB/T 229-2022 Metallic Materials - Charpy Pendulum Impact Test Method

GB/T 3075-2024 Fatigue Testing of Metallic Materials - Axial Force Control Method

GB/T 16545-2024 Corrosion of metals and alloys - Removal of corrosion products on corrosion specimens

GB/T 2039-2012 Metallic Materials - Uniaxial Tensile Creep Test Method
