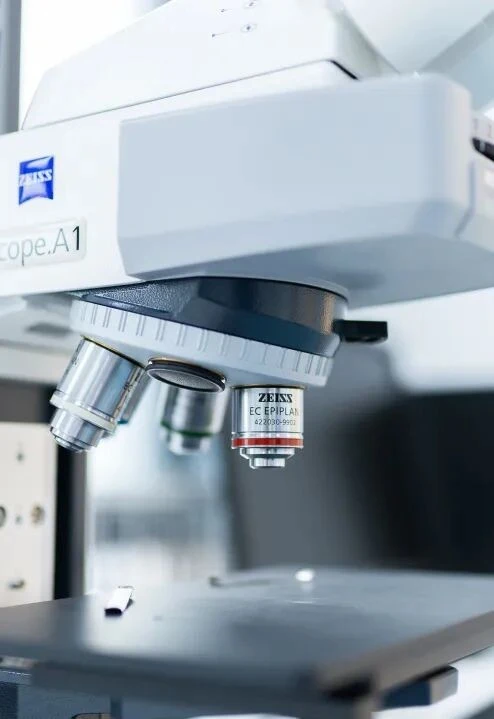

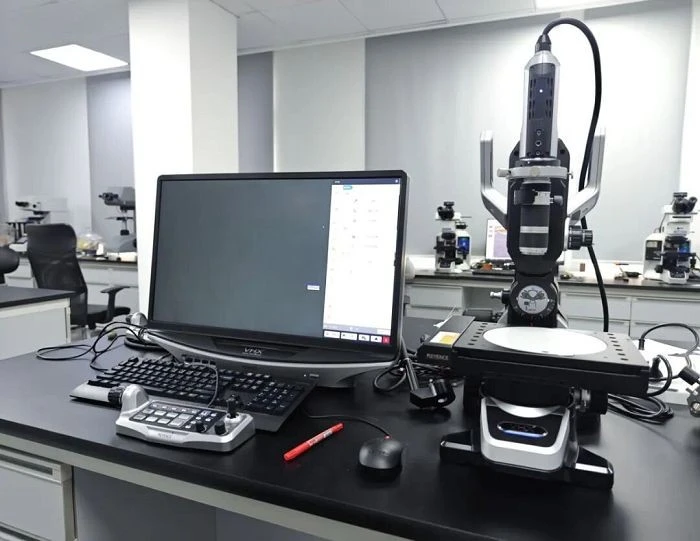

Macroscopic Metallographic Testing Of Welded Joints

Detection range



Covering welding methods: manual arc welding, gas shielded welding, submerged arc welding, electric slag welding, friction welding, plasma arc welding, laser welding, brazing, etc
Types of covered joints: butt joint, corner joint, T-shaped joint, lap joint, plug/groove welding joint, groove welding joint
Black metals: carbon steel, alloy structural steel, stainless steel, heat-resistant steel, low-temperature steel, cast iron, high manganese steel, nickel based alloys
Nonferrous metals: aluminum and aluminum alloys, copper and copper alloys, titanium and titanium alloys, magnesium alloys
Testing process: welding process evaluation, welding material/process verification, welding process quality inspection, finished welding product acceptance, failure analysis
Engineering components: pressure vessels/storage tanks, steel structures, industrial pipelines, wind power equipment, power boilers/turbines, rail transit components, aerospace welding parts, engineering machinery welding parts

Testing Standard



GB/T 19869.1-2005 Metallographic examination of welded joints of steel, nickel and nickel alloys

GB/T 26951-2011 Metallographic and Hardness Testing Methods for Welded Joints

GB/T 226-2015 Acid corrosion inspection method for macrostructure and defects of steel

GB/T 13298-2015 Method for examination of microstructure of metals

GB/T 3375-2016 Welding Terminology

JB/T 6061-2021 Magnetic Particle Testing for Surface Defects of Welded Joints

JB/T 6062-2021 Penetration Testing for Surface Defects of Welded Joints

GB/T 6462-2005 Measurement of Thickness of Metal and Oxide Coatings by Metallographic Microscopy Method

Groove filling status: Check whether the deposited metal filling at the root and side walls of the groove is full, and whether the groove angle matches the actual fusion

Weld bead/deposition layer characteristics: Determine whether the weld bead arrangement is uniform, whether the interlayer fusion is good, and whether there is interlayer separation

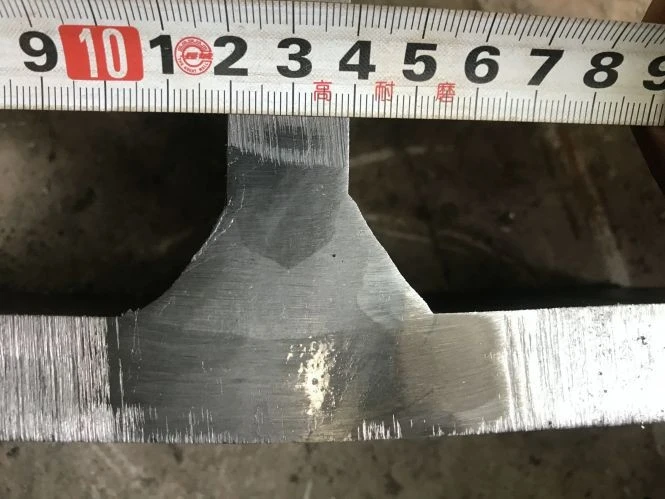

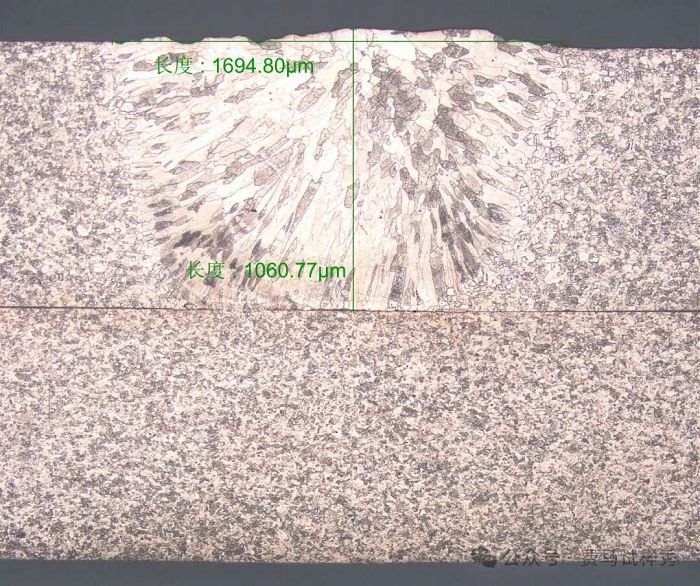

Geometric dimensions of joints: measure the excess height, weld leg size, melt depth, melt width, and root penetration size to determine if they meet the design/standard requirements

Fusion line morphology: Check whether the fusion line (at the junction of the weld seam and the base metal/heat affected zone) is continuous, clear, and without twists/interruptions

Determine the type, location, size, and distribution of defects, and rate them according to standards, covering all types of macroscopic defects in welding:

Fusion type defects: incomplete penetration (root/groove), incomplete fusion (interlayer/groove sidewall/fusion line)

Slag inclusions/inclusions: interlayer slag inclusions, linear slag inclusions, block slag inclusions, metal inclusions

Pore type: single large pore, dense pore, needle shaped pore, root pore

Crack type: weld center crack, fusion line crack, heat affected zone crack, root crack, cold/hot crack

Molding defects: weld bead, undercutting, root depression, burn through, excessive/insufficient excess height, asymmetric weld legs

Other defects: segregation zone, looseness, mixed defects of inclusions and pores

Identify the macroscopic boundaries and morphology of each area of the joint, and determine the impact of thermal processing on the organization:

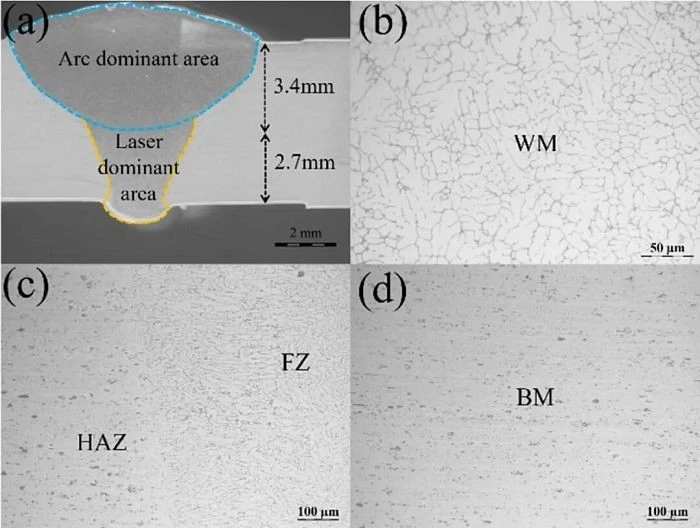

Regional division: Clearly distinguish the range of base metal zone, heat affected zone, fusion zone, and weld zone

Characteristics of heat affected zone: Measure the overall width of the heat affected zone, check whether the distribution of coarse grain zone (CGHAZ) and fine grain zone (FGHAZ) is uniform, and whether there are no local areas that are too wide/too narrow

Weld zone organization: Observe the uniformity of macroscopic organization in the weld zone, without obvious segregation zones/loose areas

Base metal and joint bonding: Determine whether the bonding between the base metal and the welding area is tight, without peeling/gaps

Welding parameter matching: Verify the rationality of welding current, voltage, welding speed, and other parameters based on the depth of fusion, width of fusion, and width of the heat affected zone

Welding material/groove matching: Determine the fusion effect between the welding material and the base material, and whether the groove design meets the fusion requirements

Defect level determination: Classify the detected defects according to corresponding standards and determine whether the joint is qualified

Process repeatability verification: Sampling and testing of batch welded components to determine the stability and repeatability of the welding process
