Brick And Tile Inspection

Detection Scope

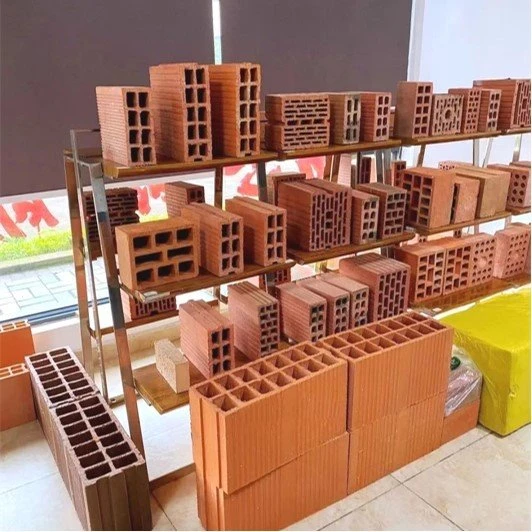

Ordinary fired bricks, perforated bricks, hollow bricks, fired tiles, glazed tiles, concrete solid bricks, perforated concrete bricks, lightweight aggregate concrete hollow blocks, concrete tiles, pavement bricks, autoclaved aerated concrete blocks, autoclaved fly ash bricks, etc.

Detection Contents:



Appearance Quality: Missing edges and corners (length / depth / width limits), cracks (length / width / number, surface cracks / penetrating cracks), bending, color difference, peeling, frosting (only for fired bricks), protruding height of impurities;

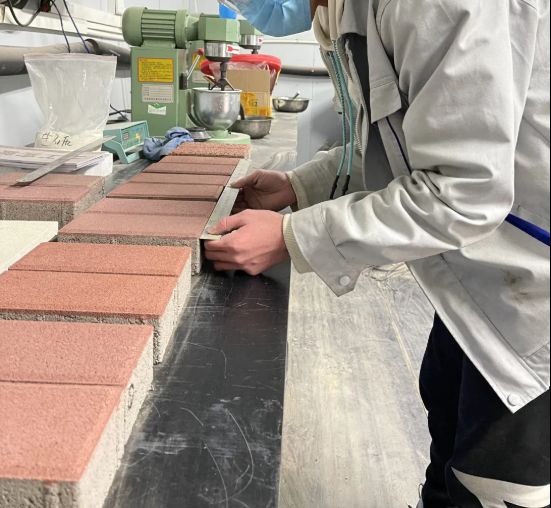

Dimension Deviation: Deviation of measured values from standard values for length, width, height (thickness), batch sampling size range, verticality deviation;
Quality Deviation: Deviation of single brick (tile) quality from average quality, quality fluctuation range of batch products.

Mechanical Performance Testing

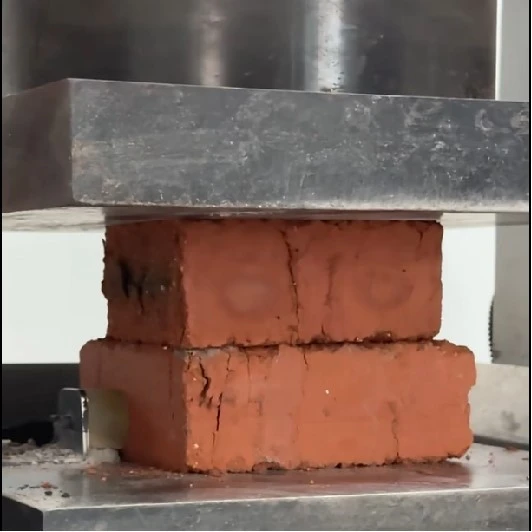

Compressive Strength: (average value / minimum value of single brick, judged by strength grade, such as MU10, MU15, MU20);

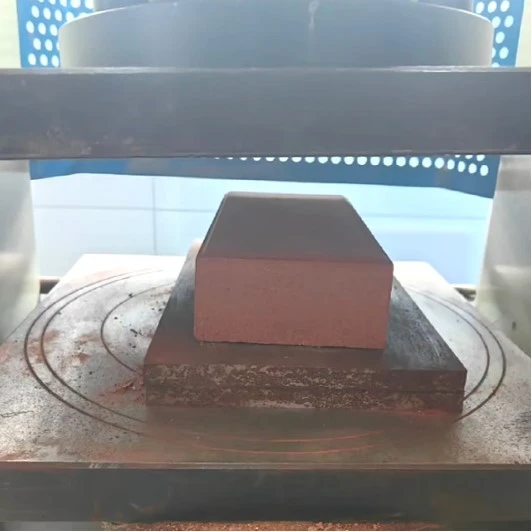

Flexural Strength: Core of fired tiles, roof load-bearing / wind resistance key, judged by grade) ;
Flexural Load: Special for fired tiles, static load flexural / impact flexural, simulate roof load) .

Durable Performance Testing:
Frosting Degree: No frosting, slight frosting, moderate frosting, severe frosting, qualified products should be without / slight frosting) ;
Limestone Cracking: Diameter / number of cracking points, judged by grade, avoid surface bulging and detachment after use) ;
Anti-Freeze Resistance: Freeze-thaw cycle test: -15℃ freezing + normal temperature melting, 15 cycles, no cracks / missing edges / peeling, compressive strength loss rate ≤ 25%, quality loss rate ≤ 5% ;
Absorption Rate: Volume absorption rate / mass absorption rate, control the density of fired bricks to avoid damage from freeze-thaw after water absorption) .
Thermal Conductivity: Energy-saving exterior wall bricks, adapted to building energy-saving requirements;
Radioactive Nuclide Limit: (must be tested for interior / exterior decoration of civil buildings, internal exposure index IRa ≤ 1.0, external exposure index Iγ ≤ 1.0) ;
Hole Rate and Hole Structure: Fired perforated bricks / hollow bricks, detect hole arrangement, hole rate, wall thickness / rib thickness, ensure load-bearing / insulation performance.

GB/T 2542-2012 Test Methods for Wall Building Bricks

GB/T 4111-2013 Test Methods for Concrete Blocks and Bricks

GB/T 32981-2016 Method for Measuring Equivalent Thermal Conductivity of Wall Materials

GB 6566-2010 Limitations on Radioactive Nuclei in Building Materials

GB/T 5101-2017 Sintered Ordinary Bricks

GB/T 13544-2011 Sintered Porous Bricks and Porous Blocks

GB/T 13545-2024 Sintered Hollow Bricks and Hollow Blocks

GB/T 21149-2017 Sintered Tiles

JC/T 765-2018

GB/T 21144-2023 Concrete Solid Bricks

GB/T 25779-2010 Concrete Porous Bricks

GB/T 15229-2011 Lightweight Aggregate Concrete Small Hollow Blocks

GB 11968-2006 Steam-Cured Aerated Concrete Blocks

GB/T 25428-2010 Steam-Cured Fly Ash Bricks

JC/T 746-2018 Concrete Tiles

GB/T 36584-2018 Test Method for Wind-Blown Off Performance of Roof Tiles

JC/T 2311-2015 Polymer Waterproofing Sheet Roof Tiles

GB/T 28635-2012 Concrete Pavement Bricks

GB/T 25993-2010 Permeable Pavement Bricks and Permeable Pavement Panels

GB/T 8488-2008 Acid-Resistant Bricks

GB/T 4100-2015 Ceramic Bricks

JC/T 466-2000 Test Methods for Concrete Small Hollow Bricks

Zhejiang Gangxin Testing Technology Co., Ltd.

was established in 2011. As a national high-tech enterprise recognized by the Zhejiang Provincial Higher People's Court as a judicial authentication institution for construction engineering quality, we specialize in structural performance testing and safety assessment of construction projects, special equipment, communication towers, electromagnetic environments, large bridges, and building safety appraisal.

The company has more than 100 professional and technical personnel, over 90% of whom hold various medium and senior technical certificates. Equipped with complete testing equipment worth over RMB 10 million, our business scope covers the whole country.
